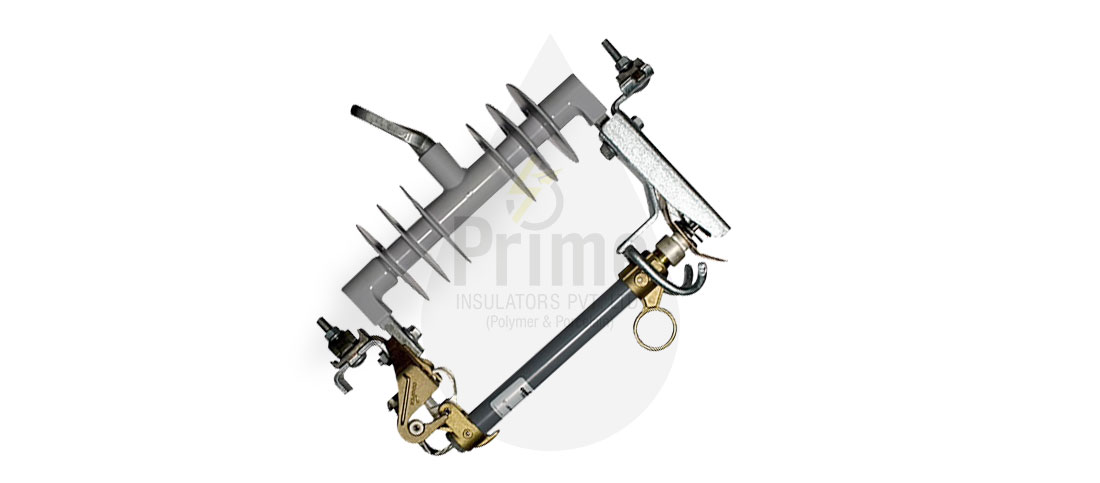

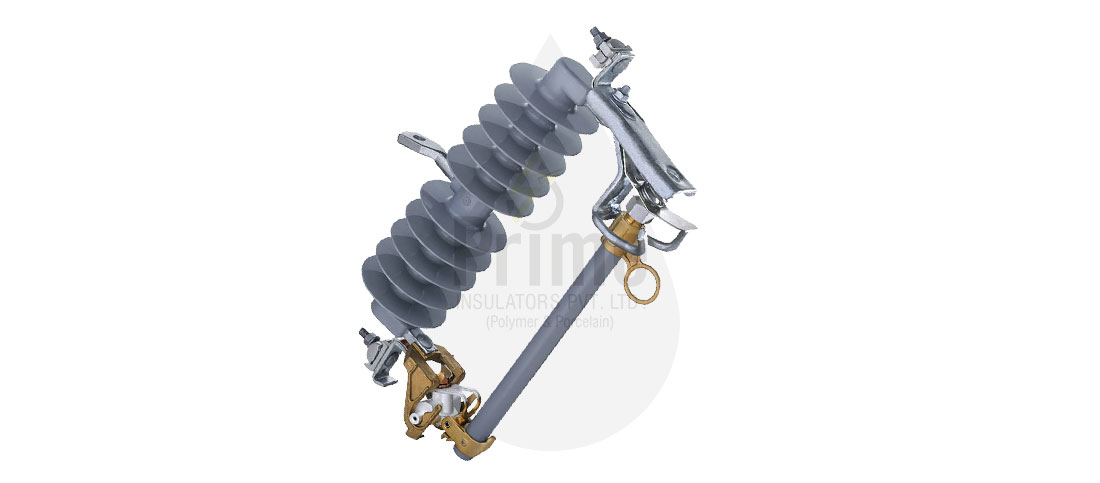

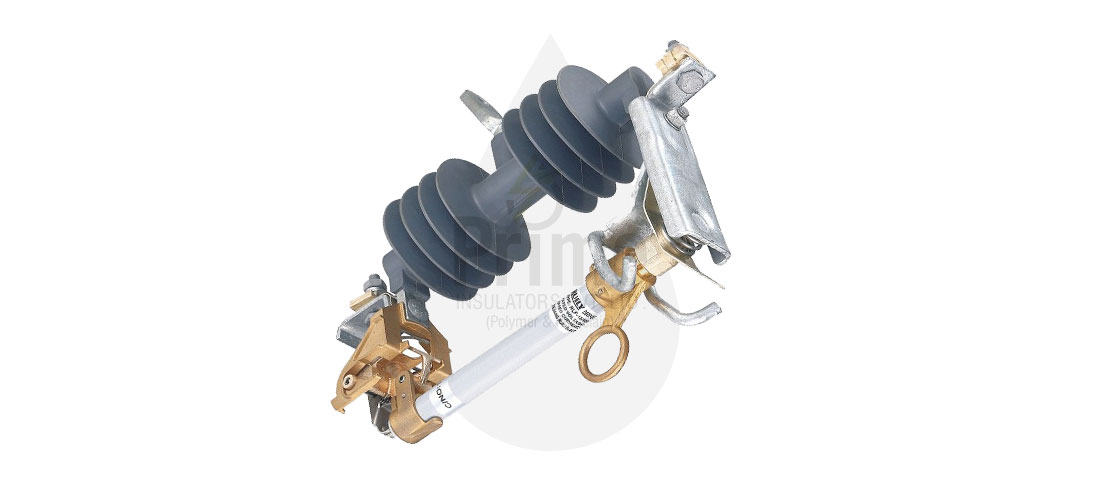

Voltage Rating: 15KV / 28KV/ 36kV– 100/200 Amp
Insulator: Composite Polymer Insulator
Type: Drop Out (DO) Fuse / Explusion Fuse Cut Out
| System Parameters | 12KV-15KV | 22KV-28KV | 33KV-36KV |
|---|---|---|---|
| Nominal System Voltage | 12KV | 22KV | 33 KV |
| Highest System Voltage | 15KV | 28KV | 36 KV |
| System Frequency | 50 Hz | 50 Hz | 50 Hz |
| Rated Currant | 100/200 Amp | 100/200 Amp | 100/200 Amp |
| Creepage Distance | 300 to 450mm | 600 to 700mm | 900 to 1116 mm |
| Power Frequency Withstand Voltage - Dry | 45 kV (rms) | 55 kV (rms) | 90 kV (rms) |
| Power Frequency Withstand Voltage - Wet | 28 kV (rms) | 35 kV (rms) | 70 kV (rms) |
| Impulse Voltage | 75 kVp | 90kVp | 170 kVp |
| Standard | IEC 60282 | IEC 60282 | IEC 60282 |
